Description
xPart Overview

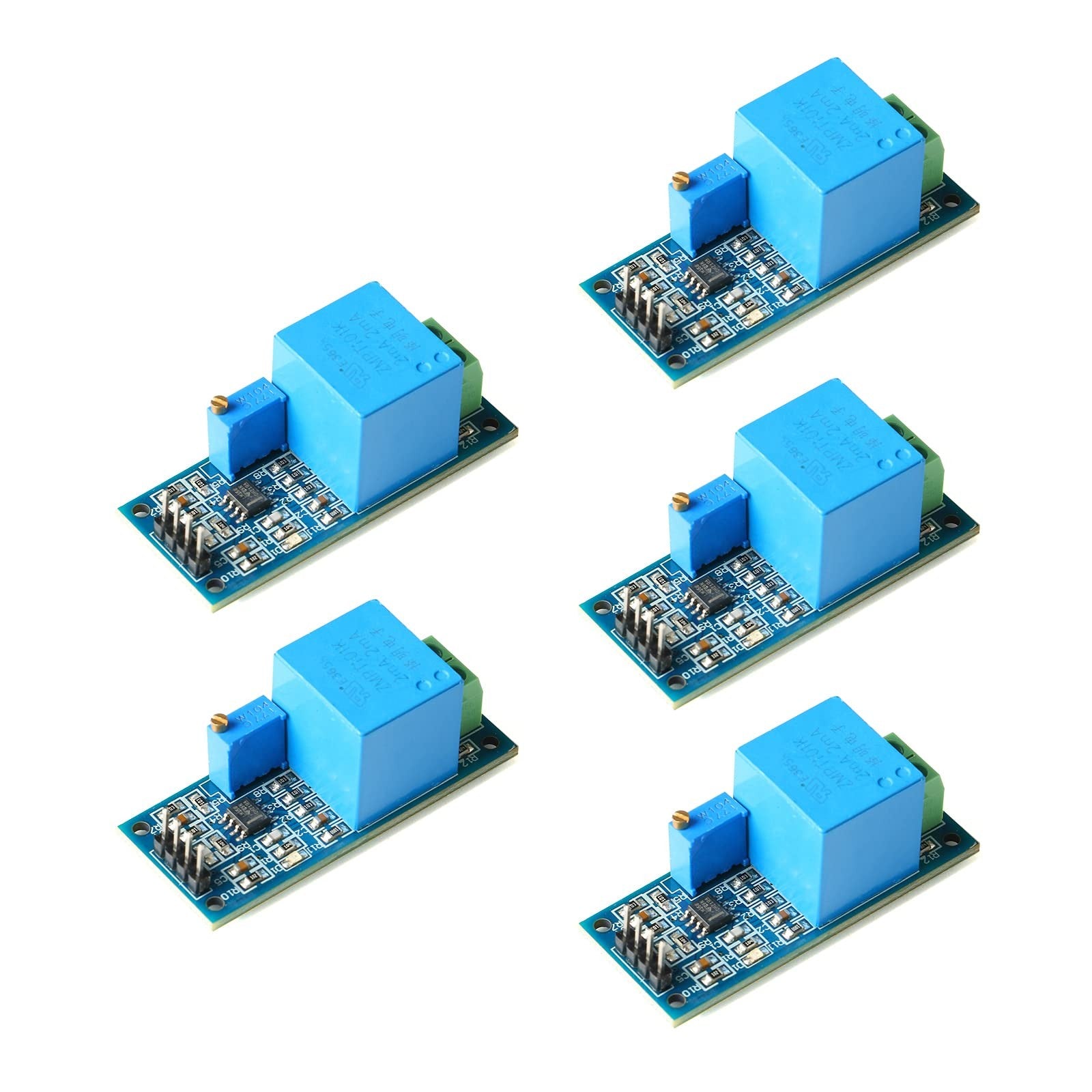

The JESSINIE 5-piece ZMPT101B Voltage Transformer Module is a precision single-phase AC voltage sensing module commonly used in DIY energy monitoring, Arduino / Raspberry Pi power-meter projects, motor protection circuits, and workshop instrumentation. Each module steps down mains AC to a safe, low-voltage analog signal (typically 0-5V) suitable for an ADC or microcontroller input. With five identical boards in the pack, you can prototype, build a multi-channel monitor, or keep spares on the bench. Backed by our 1-year warranty and free worldwide shipping.
Compatibility & Typical Use
| Platform / Project | Typical Application | Interface | Notes |
|---|---|---|---|
| Arduino (Uno / Mega / Nano) | DIY AC voltmeter, energy monitor | Analog input (0-5V) | Pair with ZMPT101B-compatible sketch libraries |
| Raspberry Pi (with ADC) | Mains voltage / power logger | External ADC input | Use with ADS1115 or similar 16-bit ADC |
| Industrial monitoring | Single-phase voltage sensing, motor protection | 0-5V analog output | Verify isolation and calibration for field use |
Key Specifications
| Part Number | ZMPT101B |
| Quantity | 5 pieces per pack |
| Input Range | 0-250V AC (single phase, nominal) |
| Output | 0-5V analog (linear with measured AC) |
| On-Board Pot | Multi-turn trimmer for gain / calibration |
| Operating Supply | 5V DC (on-board regulator) |
| Condition | Brand New |
| Warranty | 1 Year |
Why Choose This Part?

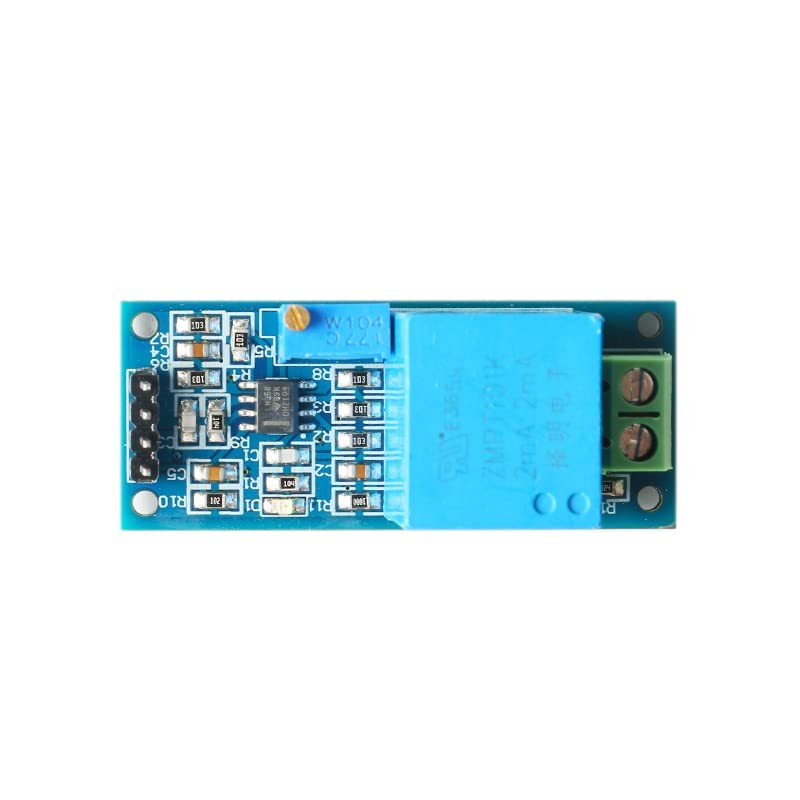

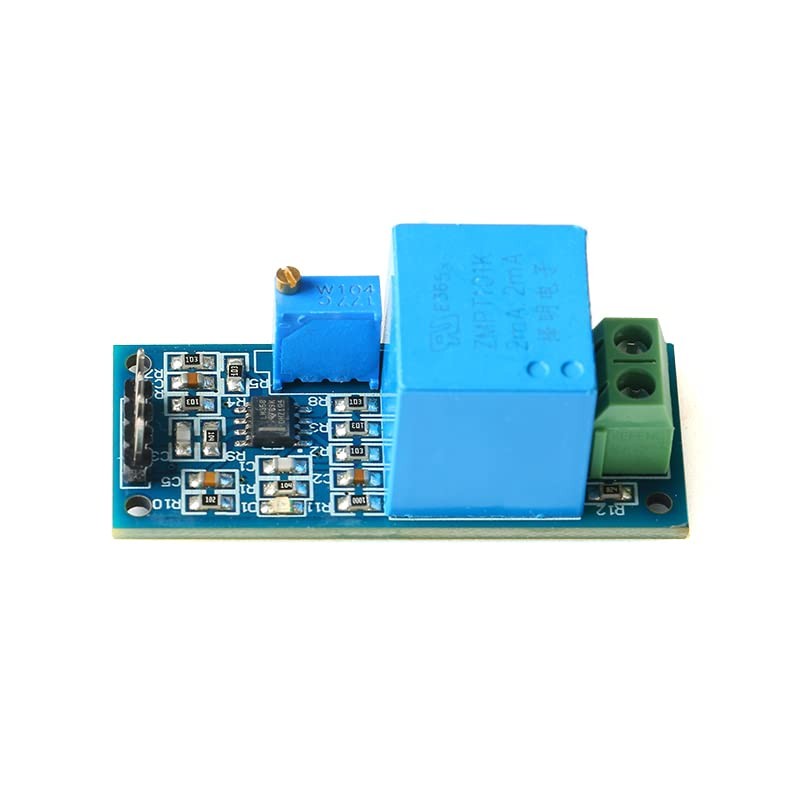

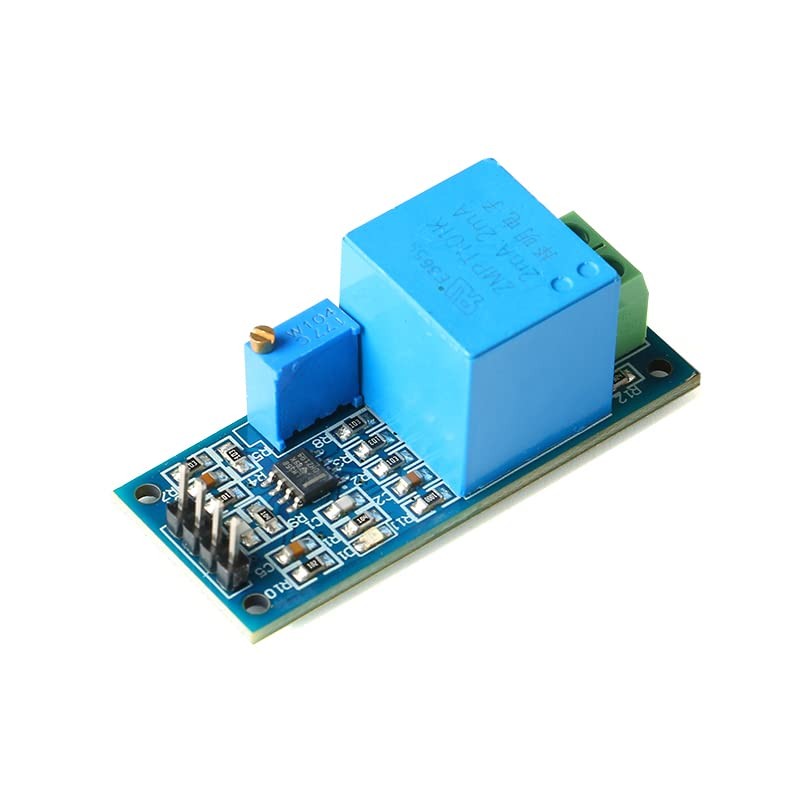

- Ready-to-Use Module: On-board op-amp, voltage regulator, and multi-turn trimmer so you only need to wire mains in and analog out.
- Multi-Pack Convenience: Five modules per pack cover multi-channel projects, classroom labs, or just spares for the workbench.
- Widely Documented: ZMPT101B has strong community support across Arduino and Raspberry Pi forums, plus example code libraries.
- Free Worldwide Shipping: Delivered to your door at no extra cost.
- 1-Year Warranty: Covered against defects for a full year from the date of purchase.
How to Order
Click Add to Quote above or email us at support@koeep.com with the part number and the quantity you need. We'll get back with availability and pricing within 24 hours.
Ready to order this part?
Click Add to Quote or email support@koeep.com with the SKU and your project details.
